RK-610S2-M
RK-610S2-M Rack-mounted Industrial Chassis
Product Features:
19-inch standard chassis
Supports ATX industrial motherboards and standard ATX power supply
2×5.25" optical drive bays or 4×3.5" HDD trays
2×2.5" HDD/SSD trays
Vibration-dampening design for HDD trays
Front panel with 2×USB 2.0 ports
Removable front fan filter for easy cleaning and replacement
Product Specifications
Component
Drive Bays
System Fans
Expansion Slots
Compatible Motherboard
USB Ports
System Controls
Power Supply
Operating Temperature

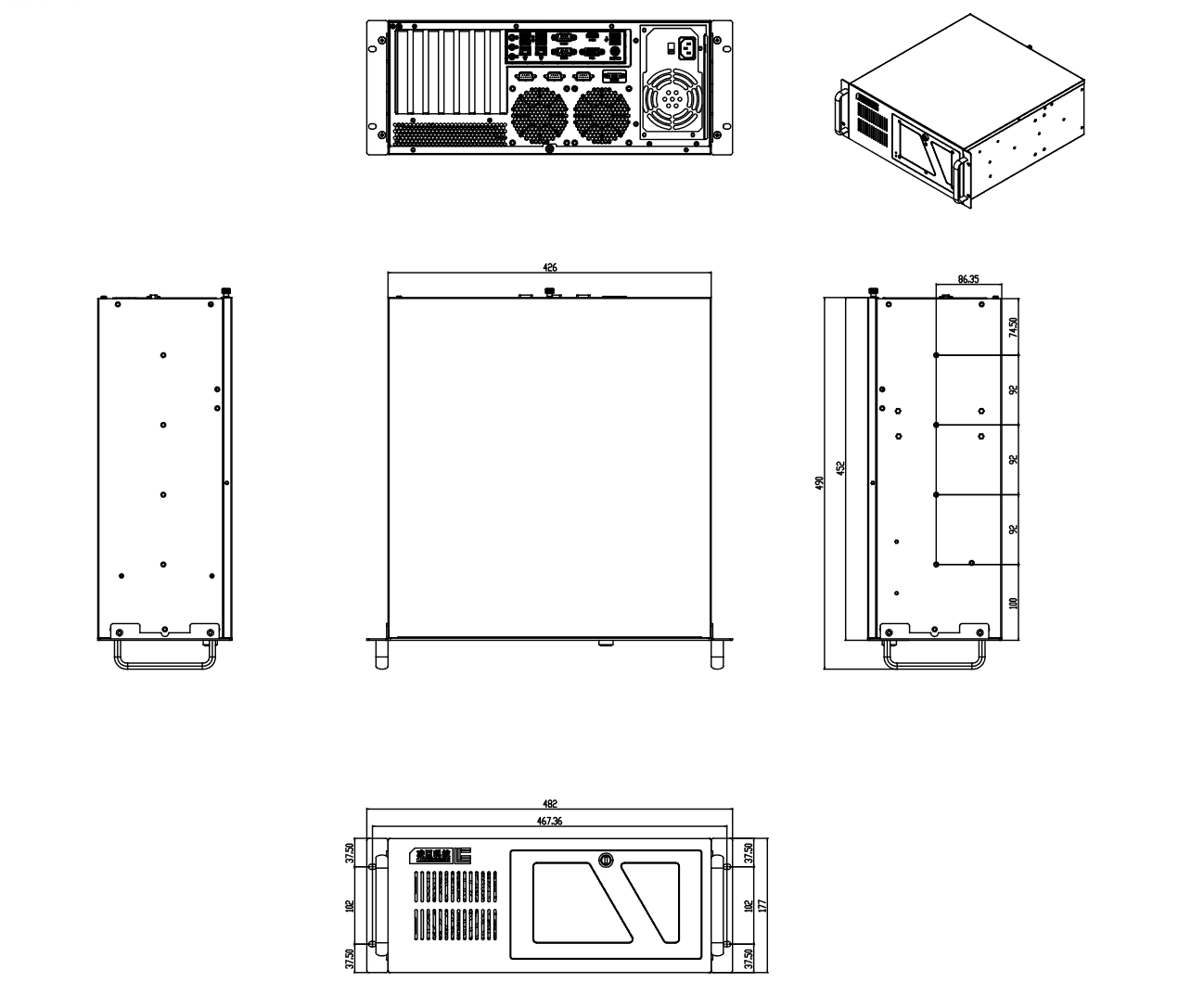

Dimensions (W×H×D)
Package Dimensions
Weight
Specification
4×3.5" HDD / 2×5.25" DVD, 2×2.5" HDD/SSD
1×120mm cooling fan (with dust filter), 1×60mm cooling fan
7 full-height PCI/PCIe slots
ATX/Micro ATX industrial motherboards
2 external USB ports
1×Power SW, 1×Reset SW, 1×Power LED, 1×HDD LED
Standard ATX power supply
-20°C to 60°C
482mm × 177mm × 452mm
555mm × 295mm × 615mm
9.9 kg
① Reset SW
② LED Indicators
③ Front USB Ports
④ Power SW (Power Switch)
⑤ HDD/SSD and Optical Drive Trays
① PS2 Power Supply Location
② Fan Position
③ PCI/PCIe Expansion Slots
